Product Specifications:
None available

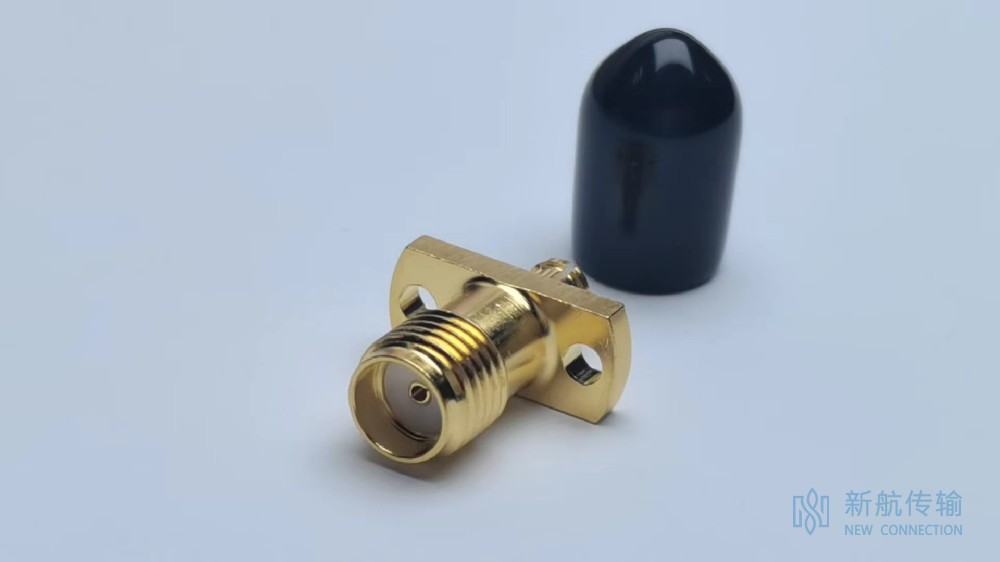

SMA Series Product Introduction
With advantages such as small size, wide bandwidth, and reliable mechanical and electrical performance, it is currently the most widely used coaxial RF connector.
It is used in fields such as communications, aerospace, navigation, weapon systems, and microwave measurement equipment.
Detailed specifications of SMA series products
— Frequency range:
Flexible cable, 0–12.4 GHz
Semi-flexible cable 0–18 GHz
— Ambient temperature: -55°C to +155°C
— Characteristic impedance: 50Ω
— Voltage Standing Wave Ratio (VSWR):
For use with flexible cable: ≤1.15+0.02F
For use with semi-rigid or semi-flexible cables, the tolerance should be ≤1.10+0.02F.
— Insulation resistance: ≥5000MΩ
— Operating voltage: 330V
— Dielectric withstand voltage: 1000V
— Contact resistance:
Center conductor: <3mΩ
Outer conductor: <2mΩ
— Mechanical life: 500 insertion/removal cycles
