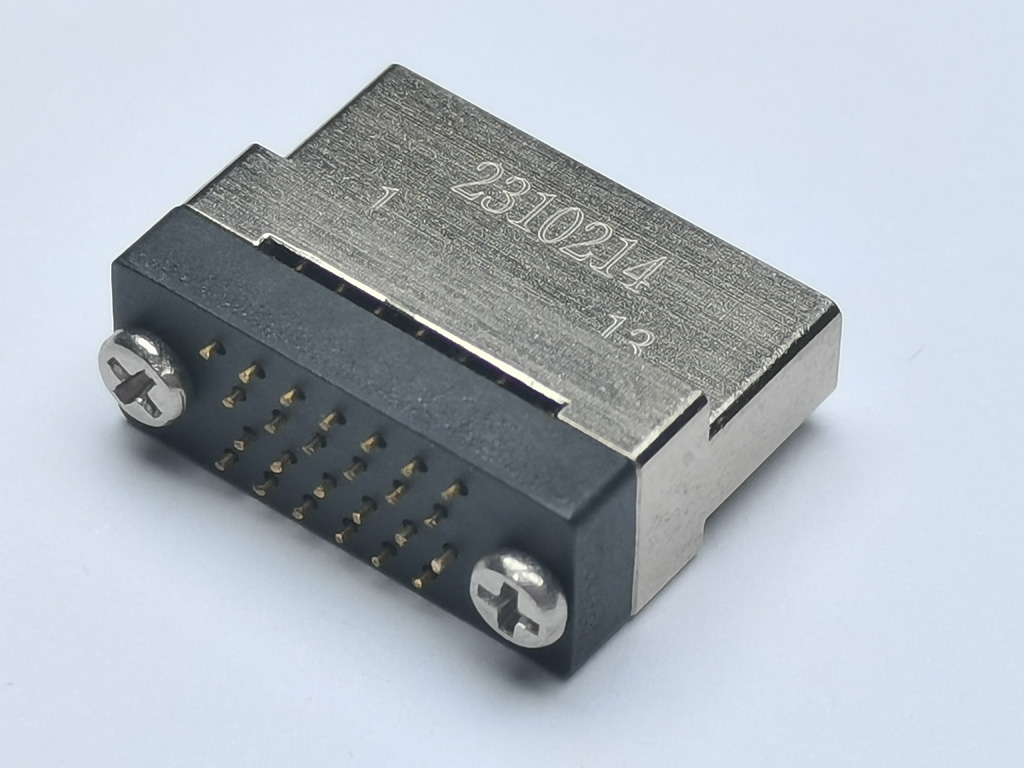

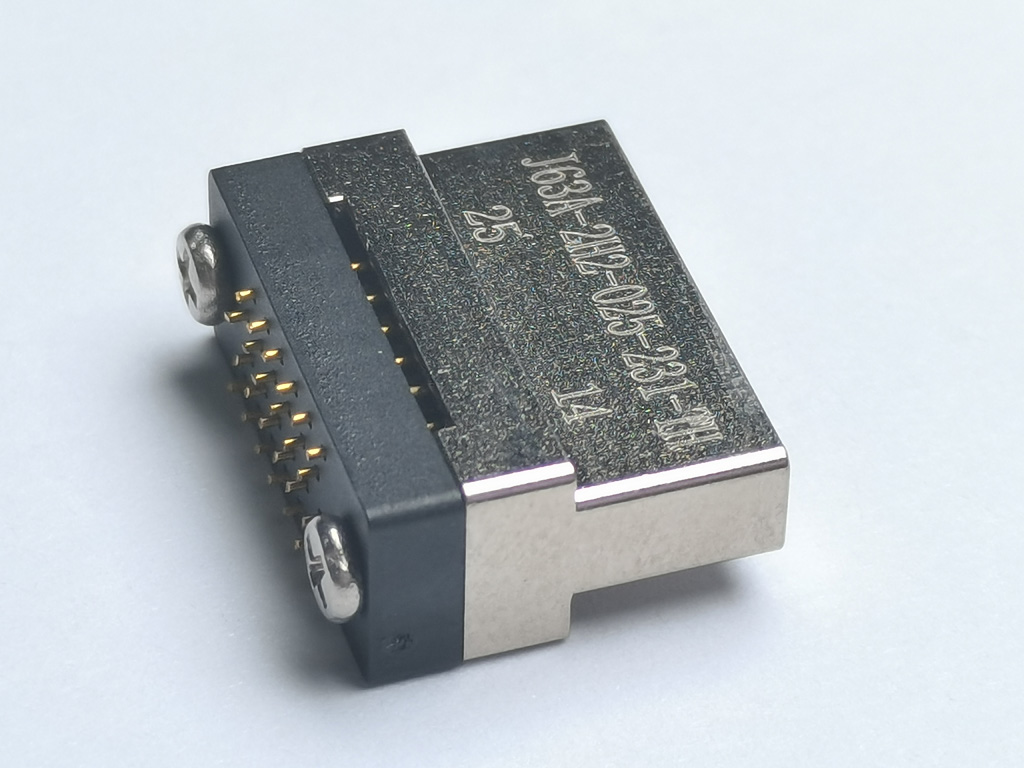

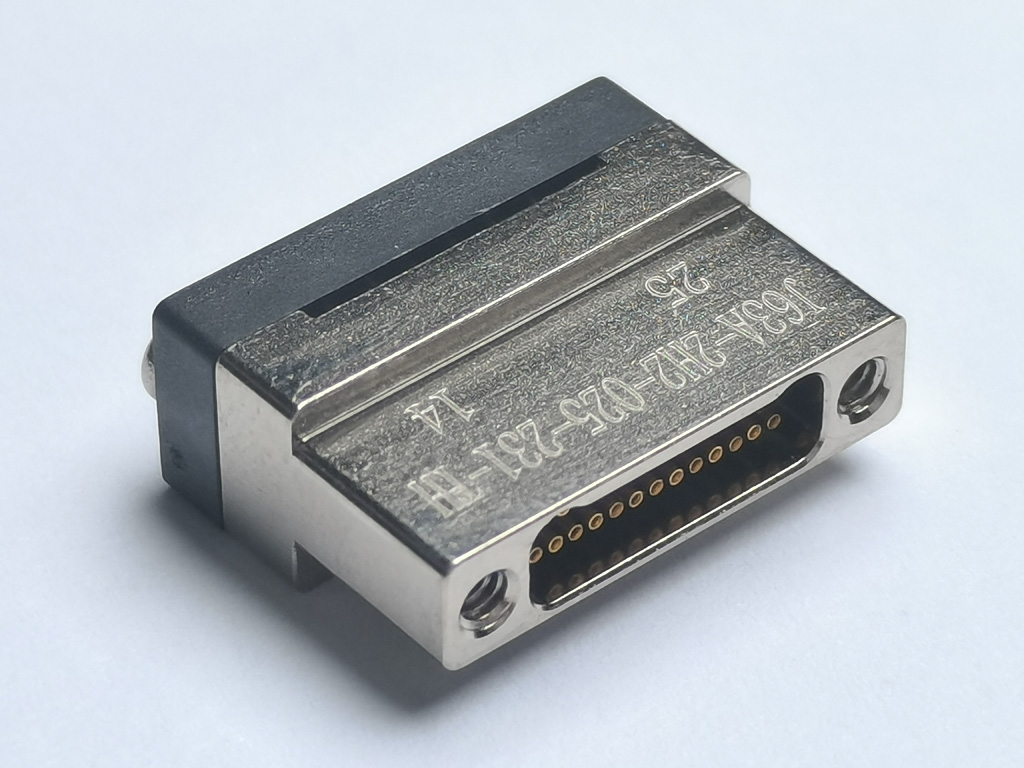

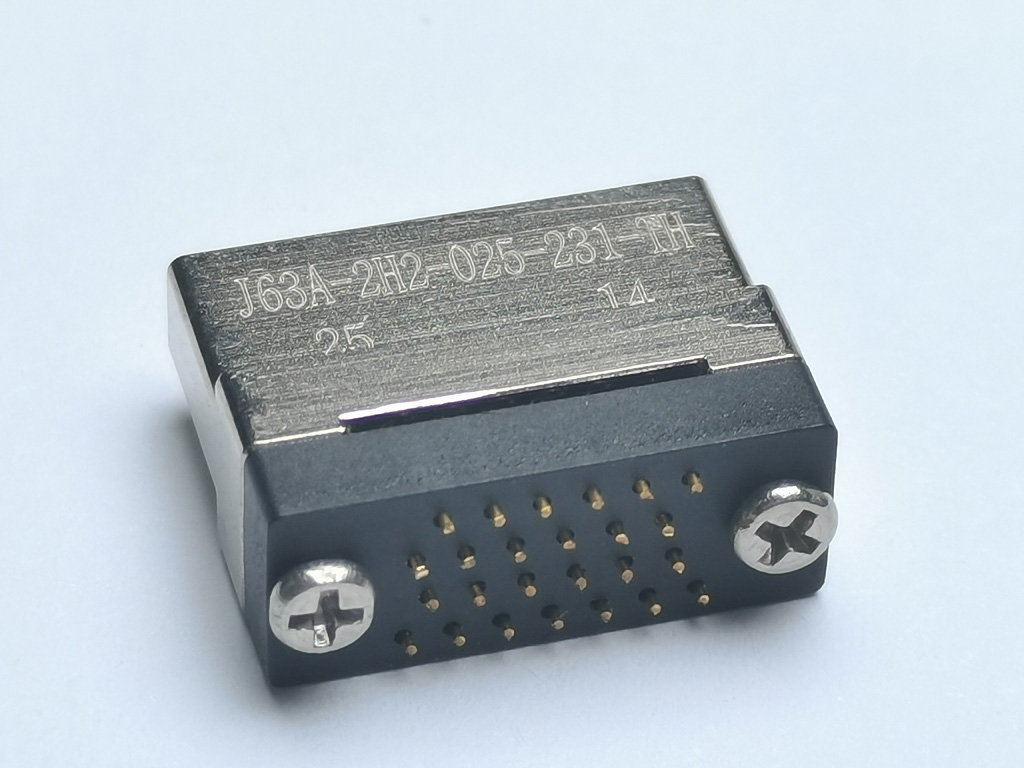

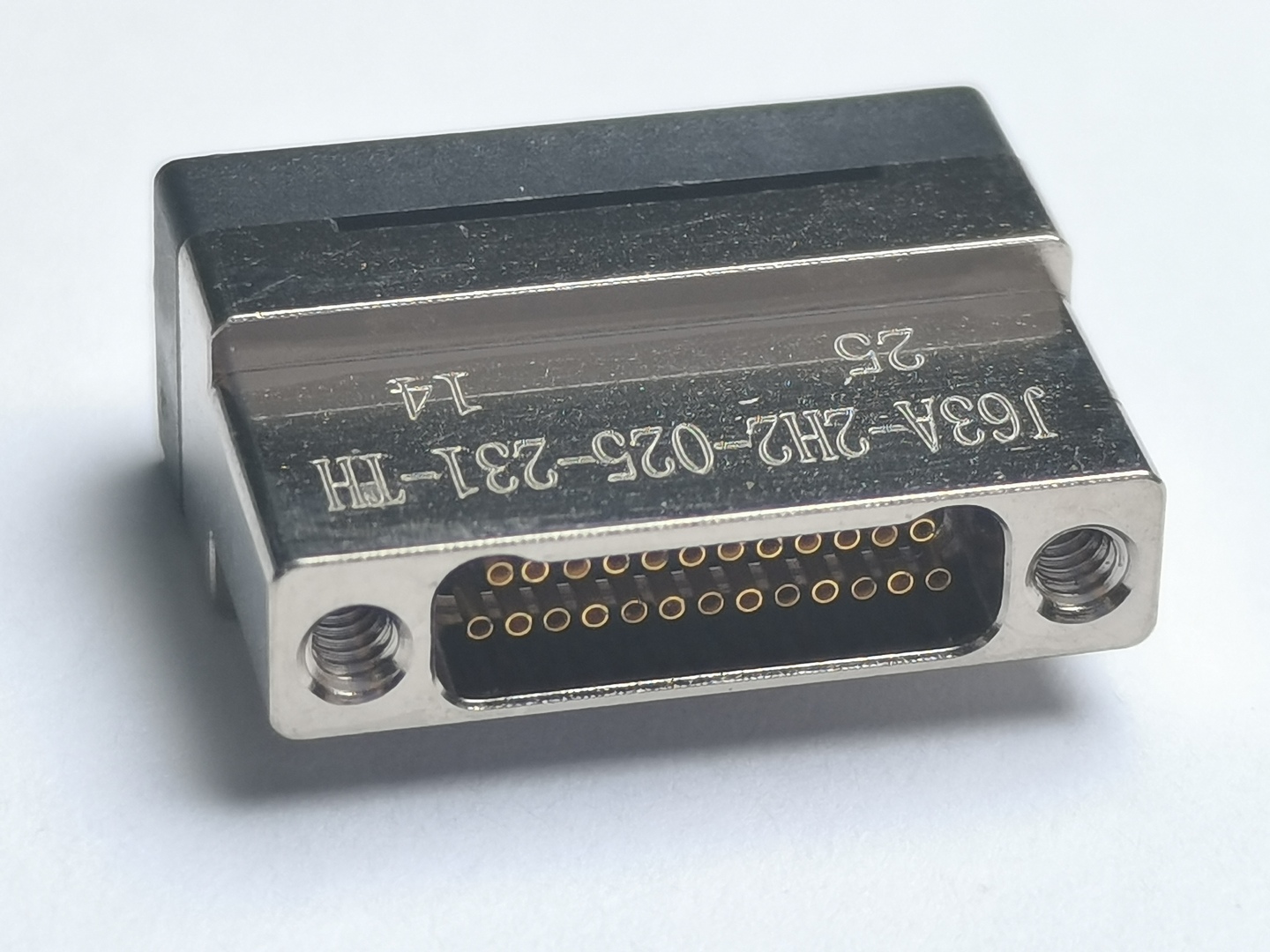

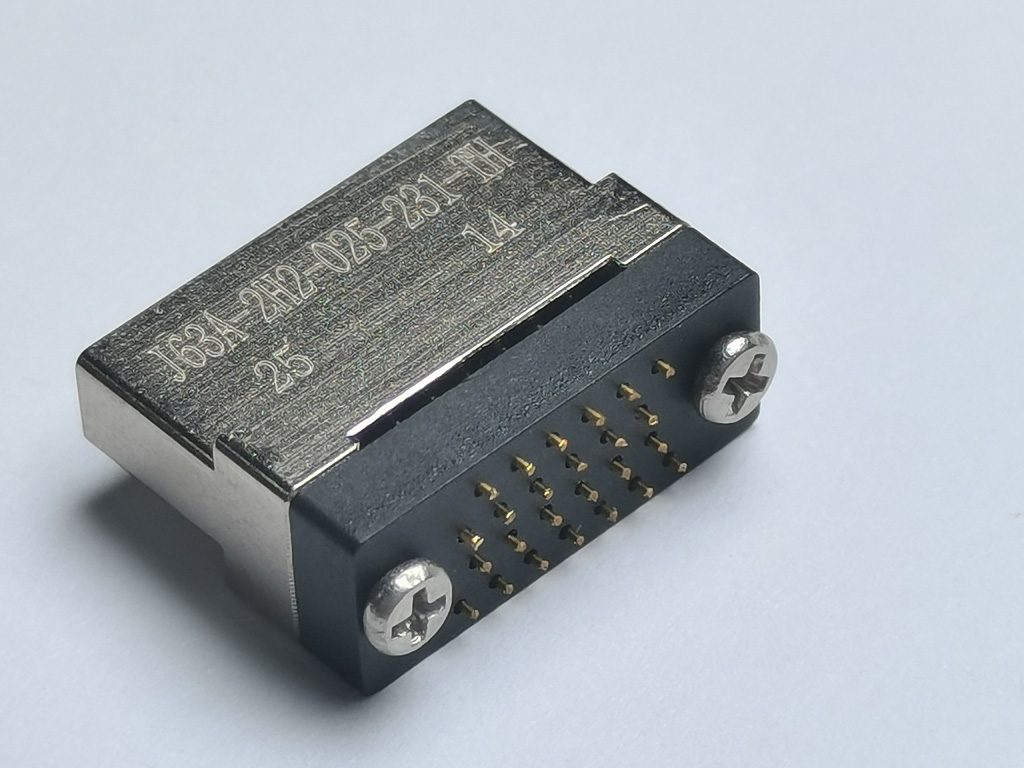

J63A Series Nano D Rectangular Connectors
Product Overview
The J63A Series Nano D Connectors are ultra-miniature, high-density rectangular connectors engineered for aerospace, military, avionics, satellite, and other mission-critical electronic systems. The J63A and J70A series share identical electrical and mechanical performance, differing only in external dimensions.
Featuring advanced Twist Pin flexible Nano-contact technology with a 0.635 mm contact pitch, the J63A series provides outstanding electrical reliability, excellent vibration resistance, and a compact, lightweight design. The connectors are secured using a precision screw-lock coupling system, ensuring smooth mating and reliable locking even in harsh operating environments.
Available in 5, 9, 15, 21, 25, 31, 37, 51, 65, 69, and 85 contact configurations, the J63A series is ideal for applications requiring high-density signal transmission with minimum space and weight.
Key Features
- Ultra-miniature Nano D rectangular connector
- High-density 0.635 mm contact spacing
- Twist Pin flexible Nano-contact technology
- Compact and lightweight construction
- High reliability and long service life
- Precision screw-lock coupling
- Excellent resistance to vibration and shock
- Smooth insertion and secure locking
- Available in 11 contact arrangements (5–85 contacts)
- Suitable for high-density electronic systems
Applications
- Aerospace Systems
- Military Electronics
- Avionics
- Satellites
- UAV & Drone Systems
- Radar Equipment
- Communication Systems
- Industrial Control
- Medical Electronics
- Test & Measurement Equipment
Technical Specifications
| Specification | Value |
|---|---|
| Product Series | J63A |
| Connector Type | Nano D Rectangular Connector |
| Contact Pitch | 0.635 mm |
| Contact Configurations | 5, 9, 15, 21, 25, 31, 37, 51, 65, 69, 85 Contacts |
| Contact Technology | Twist Pin® Flexible Nano Contacts |
| Wire Cross Section | 0.035 mm² |
| Coupling Method | Screw Lock |
| Rated Current | 1 A |
| Operating Temperature | -55°C to +125°C |
| Contact Resistance | ≤21 mΩ |
| Insulation Resistance | ≥5000 MΩ @100 VDC |
| Dielectric Withstanding Voltage | 250 VAC |
| Mechanical Life | ≥200 Mating Cycles |
| Vibration | 10–2000 Hz, 196 m/s² |
| Random Vibration | 0.4 G²/Hz (23.1 Grms) |
| Shock Resistance | 980 m/s² (6 ms) |
Product Advantages
- Ultra-compact Nano D design
- High-density signal transmission
- Lightweight construction for aerospace applications
- Excellent electrical stability
- Reliable Twist Pin contact technology
- Outstanding vibration and shock resistance
- Precision screw-lock mechanism
- Long operational life
- Suitable for harsh environments
- Easy integration into compact electronic equipment
Environmental Performance
- Operating Temperature: -55°C to +125°C
- High resistance to mechanical shock
- Excellent vibration endurance
- Designed for long-term operation in demanding environments
- Ideal for aerospace, military, and industrial applications
Available Contact Counts
- 5 Contacts
- 9 Contacts
- 15 Contacts
- 21 Contacts
- 25 Contacts
- 31 Contacts
- 37 Contacts
- 51 Contacts
- 65 Contacts
- 69 Contacts
- 85 Contacts
Typical Applications
The J63A Series is widely used in:
- Flight control systems
- Missile electronics
- Military communication equipment
- Satellite payloads
- Navigation systems
- Electronic warfare systems
- High-density PCB interconnections
- Robotics
- Medical devices
- Precision instrumentation
