Product Overview

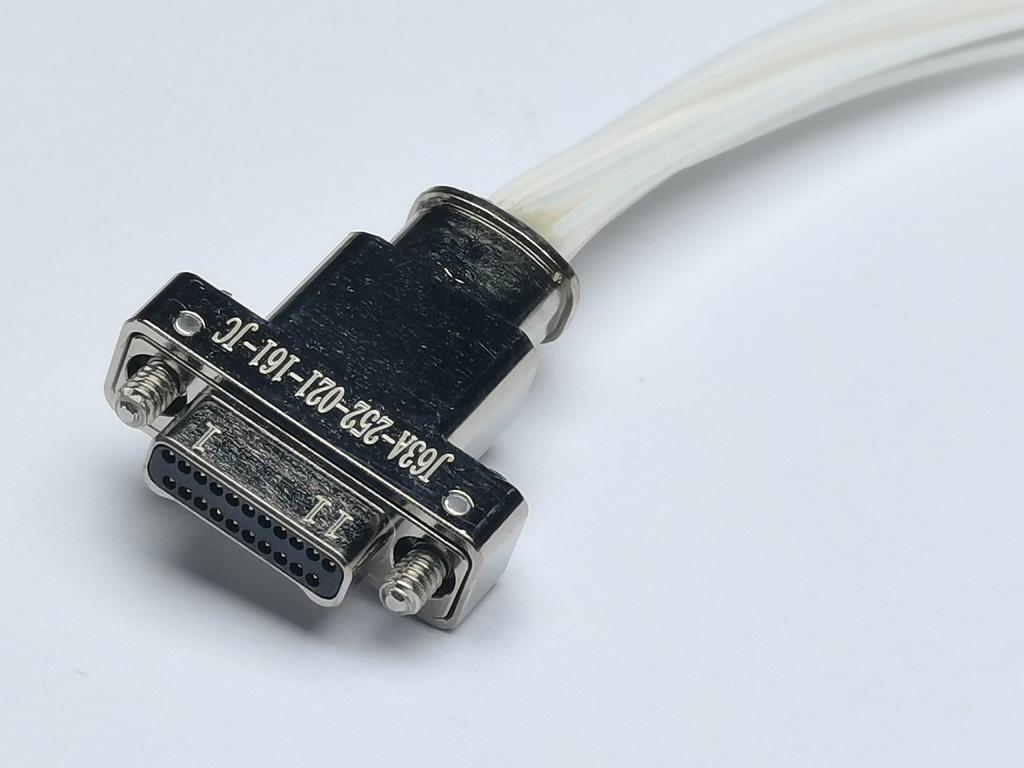

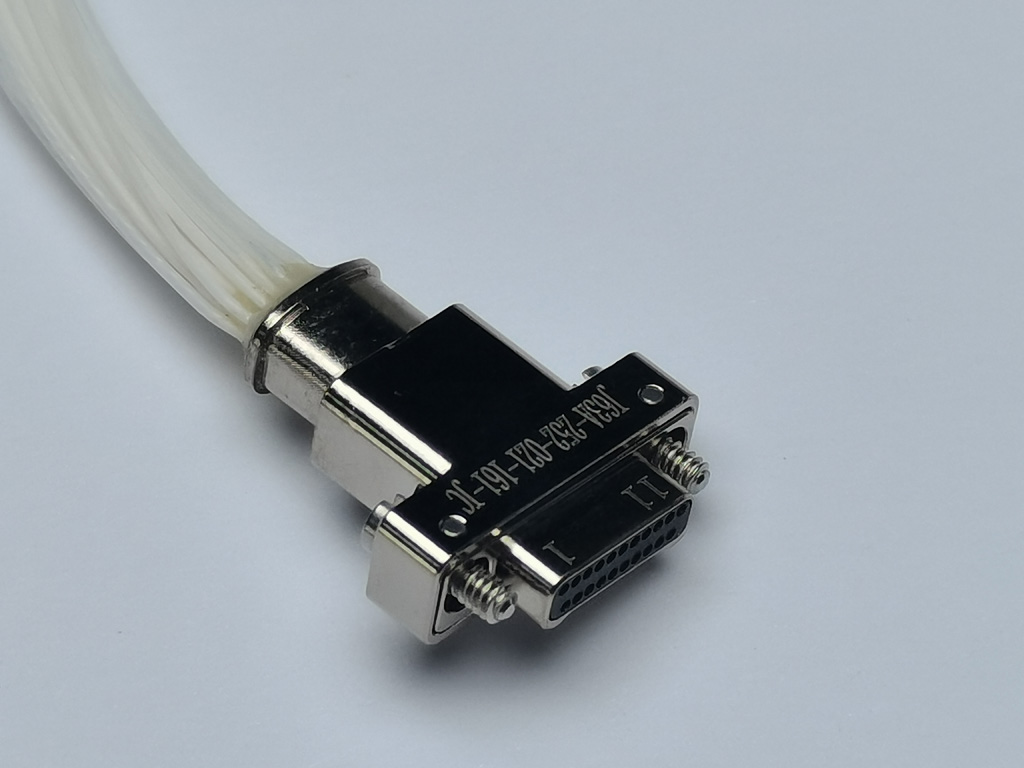

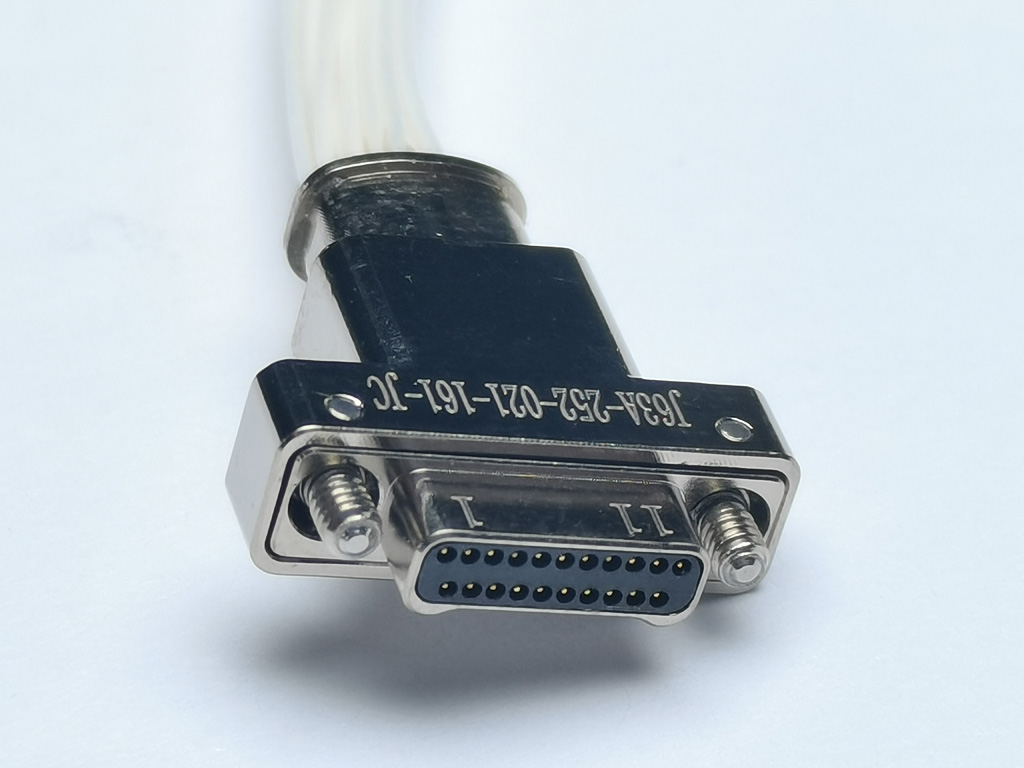

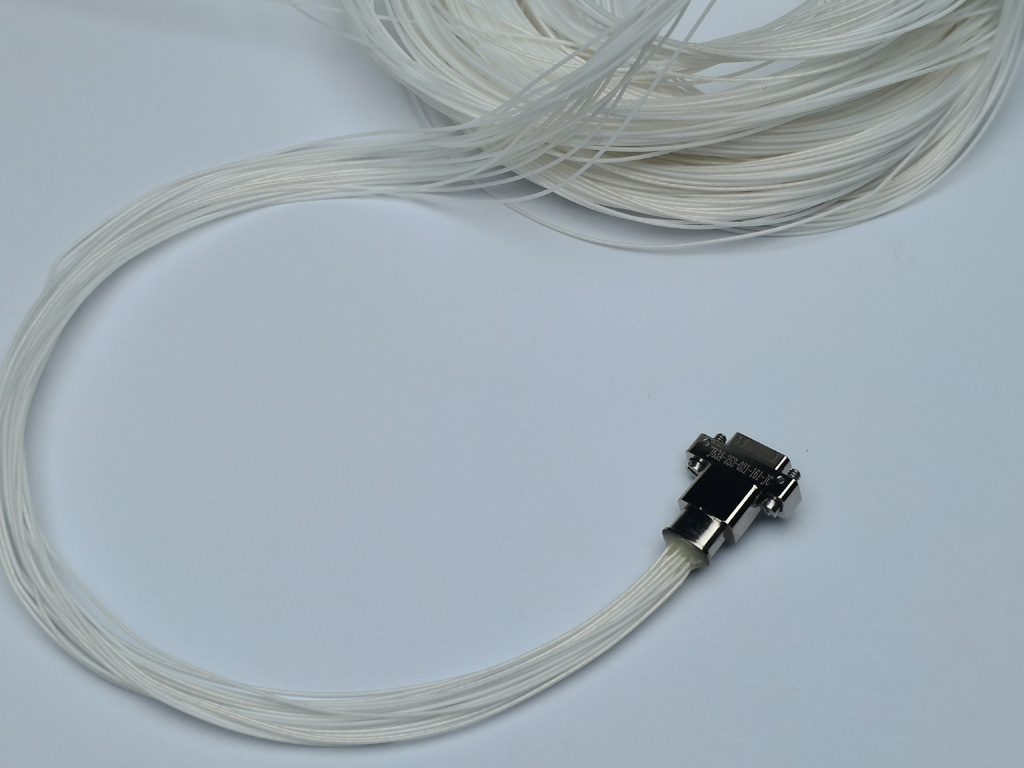

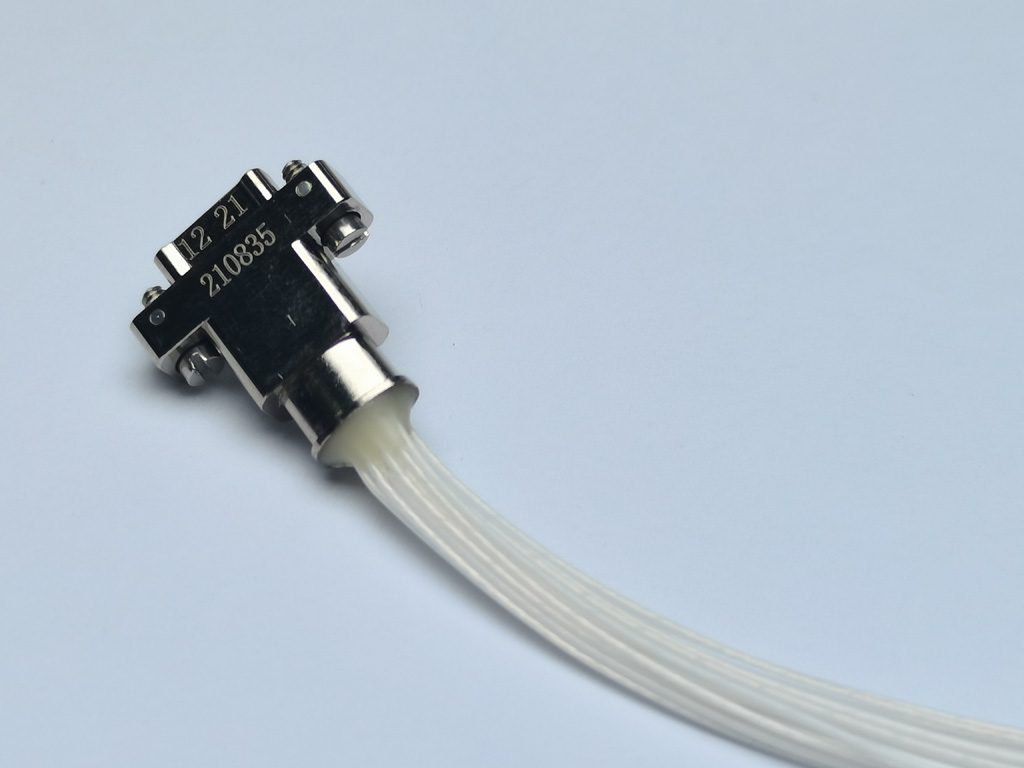

The J63A Series Nano D Connectors are high-density miniature rectangular connectors designed for aerospace, military, avionics, communication, and other mission-critical electronic systems. They offer outstanding reliability, compact dimensions, and lightweight construction for applications where space and performance are equally important.
The J63A and J70A series share identical electrical and mechanical characteristics, with only minor differences in their external dimensions.
Featuring 0.635 mm contact spacing and advanced Twist Pin contact technology, these connectors ensure excellent electrical performance, stable contact resistance, and long service life.
A precision screw-lock coupling mechanism provides secure mating, smooth engagement and disengagement, and exceptional resistance to vibration and shock.
Key Features
- Ultra-miniature Nano D rectangular connector
- High-density contact arrangement
- 0.635 mm contact pitch
- Flexible Twist Pin contacts
- Compact and lightweight design
- Secure screw-lock coupling
- Smooth insertion and extraction
- High reliability under severe vibration
- Excellent electrical performance
- Ideal for aerospace and defense applications
Available Contact Arrangements
The J63A Series is available with:
- 5 Contacts
- 9 Contacts
- 15 Contacts
- 21 Contacts
- 25 Contacts
- 31 Contacts
- 37 Contacts
- 51 Contacts
- 65 Contacts
- 69 Contacts
- 85 Contacts
Mechanical Design
- Contact Pitch: 0.635 mm
- Wire Size: 0.035 mm² (Crimp)
- Plug: Twist Pin contacts
- Receptacle: Socket contacts
- Coupling Method: Screw Lock
- Free-end and fixed-end configurations available
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | J63A |
| Contact Pitch | 0.635 mm |
| Available Contact Counts | 5, 9, 15, 21, 25, 31, 37, 51, 65, 69, 85 |
| Wire Size | 0.035 mm² |
| Rated Current | 1 A |
| Contact Resistance | ≤21 mΩ |
| Insulation Resistance | ≥5000 MΩ @100 VDC |
| Dielectric Withstanding Voltage | 250 VAC |
| Mechanical Life | ≥200 Mating Cycles |
| Operating Temperature | -55°C to +125°C |
| Vibration | 10–2000 Hz, 196 m/s² |
| Random Vibration | 0.4 G²/Hz, 23.1 Grms |
| Shock Resistance | 980 m/s² (6 ms) |
Applications
The J63A Series is widely used in:
- Aerospace Systems
- Military Electronics
- Avionics
- Satellite Systems
- UAV & Drone Platforms
- Missile Guidance Systems
- Radar Equipment
- Communication Systems
- Medical Electronics
- Industrial Automation
- Test & Measurement Equipment
Advantages
- Ultra-miniature and lightweight construction
- High-density signal transmission
- Reliable Twist Pin® technology
- Excellent vibration and shock resistance
- Secure screw-lock coupling
- Long operational life
- Stable electrical performance
- Ideal for mission-critical applications
