Product Specifications
Product Introduction
The interface dimensions comply with GJB599B (MIL-DTL-38999 Series III), and the optical performance complies with the ARINC 801 standard.

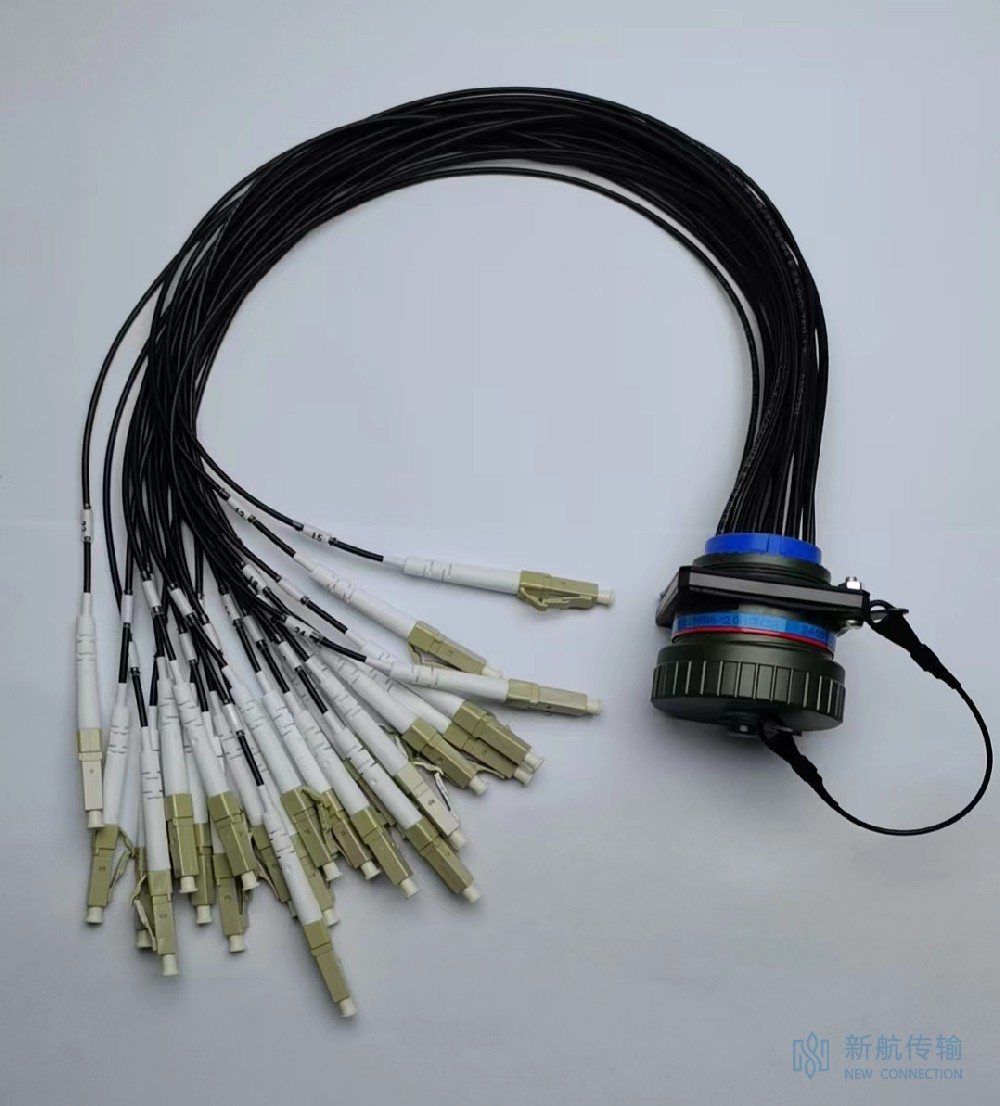

Designed for aerospace, avionics, electronics, and naval applications, this connector provides a reliable solution for multi-channel fiber optic communication systems.

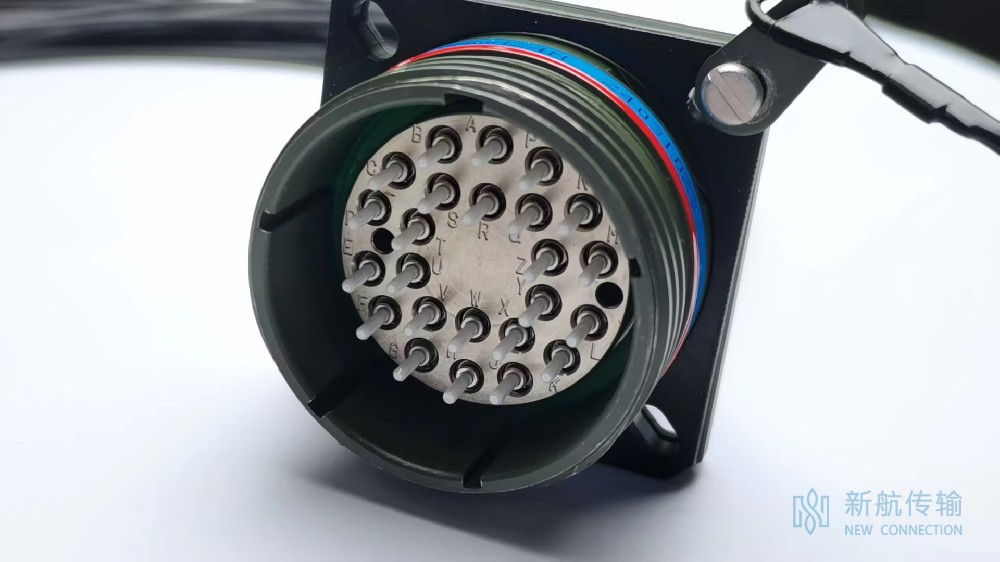

The connector utilizes standard 1.25 mm ceramic ferrules, ensuring precise optical alignment and excellent mating accuracy.
Its modular ceramic ferrule insert can be completely removed and replaced, allowing convenient installation, maintenance, and field repair.
Compatible with the M81969/14-03 contact insertion and extraction tool for easy assembly and maintenance.
Key Features
- Compliant with GJB599B (MIL-DTL-38999 Series III) interface dimensions
- Optical performance compliant with ARINC 801
- Standard 1.25 mm ceramic ferrules
- Modular and replaceable ceramic ferrule insert
- Easy installation and maintenance
- Compatible with M81969/14-03 insertion/extraction tool
- Suitable for harsh aerospace and military environments
Mechanical Characteristics
| Parameter | Specification |
|---|---|
| Mechanical Life | ≥ 500 Mating Cycles |
| Shock Resistance | Peak acceleration 2940 m/s², duration 3 ms, velocity change 5.61 m/s |
| Vibration | 10–2000 Hz, PSD 0.4 G²/Hz, RMS acceleration 23.1 G |
| Tensile Strength | ≥ 68 N (2 mm fiber optic jumper cable) |
Optical Characteristics
| Parameter | Specification |
|---|---|
| Insertion Loss | ≤ 0.6 dB |
| Return Loss @ 850 nm | ≥ 20 dB |
| Return Loss @ 1310 nm | ≥ 40 dB |
Environmental Characteristics
| Parameter | Specification |
|---|---|
| Operating Temperature | −55°C to +125°C* |
| Salt Spray | Category K: 500 h |
| Salt Spray | Class F: 48 h |
| Salt Spray | Class W: 500 h |
| Acidic Atmosphere | MW Category: 192 h |
*Operating temperature depends on the selected fiber optic cable.
