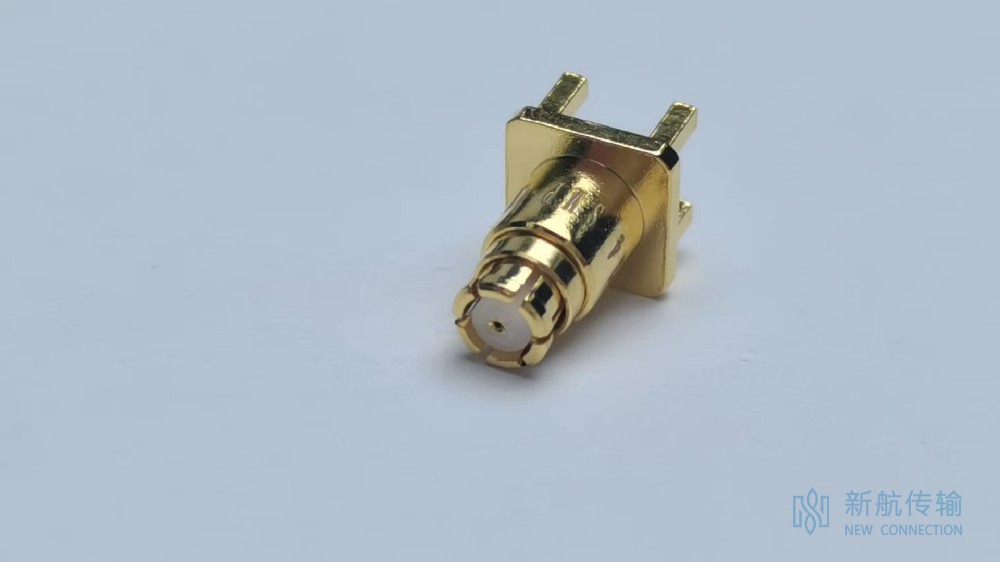

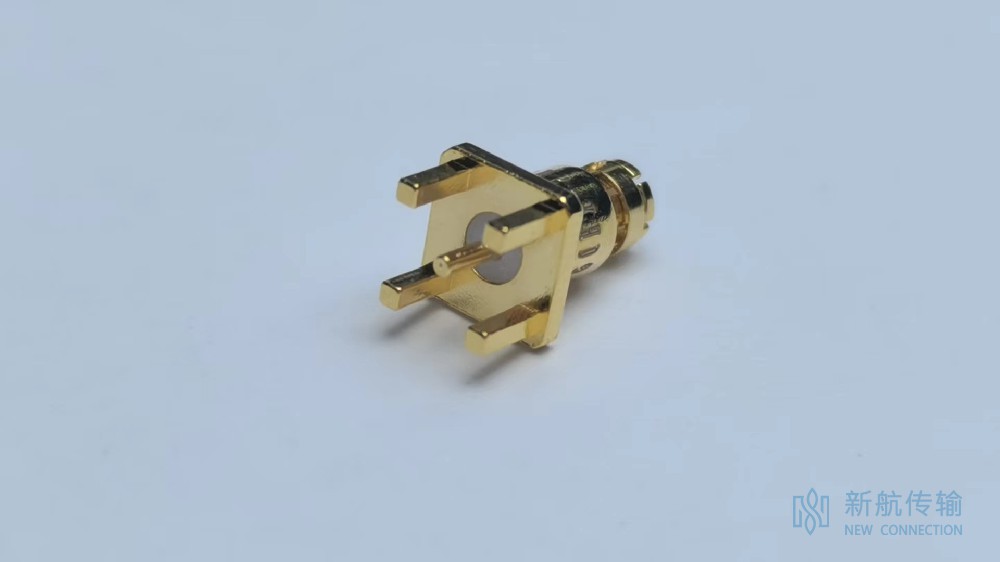

SMP Series Product Introduction
The SMP Series is a high-performance miniature RF coaxial connector designed for high-frequency applications. It offers high operating frequency, quick connect/disconnect capability, excellent vibration resistance, and tolerance for both axial and radial misalignment, making it ideal for blind-mate and high-density interconnection systems.
SMP connectors are widely used in aerospace, defense electronics, radar systems, satellite communications, wireless communications, microwave modules, and high-density board-to-board, chassis-to-chassis, and cabinet-to-cabinet interconnections.
Key Features
- Miniature and lightweight design
- Blind-mate capability
- High operating frequency up to 40 GHz
- 50 Ω characteristic impedance
- Excellent electrical and mechanical performance
- Low VSWR and insertion loss
- Gold-plated contacts for excellent conductivity and corrosion resistance
- High resistance to vibration and shock
- Tolerance for axial and radial misalignment
- Suitable for high-density RF interconnections
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | DC–12.4 GHz (Flexible Cable) DC–40 GHz (Semi-Rigid / Semi-Flexible Cable) |
| Characteristic Impedance | 50 Ω |
| Operating Temperature | −55°C to +155°C |
| VSWR | ≤ 1.35 @ 18 GHz (Vertical Type) |
| Insulation Resistance | ≥ 5000 MΩ |
| Operating Voltage | 335 V RMS |
| Dielectric Withstanding Voltage | 500 V RMS |
| Center Contact Resistance | ≤ 6 mΩ |
| Outer Contact Resistance | ≤ 2.5 mΩ |
| Mechanical Life | ≥ 500 Mating Cycles |
Typical Applications
- Aerospace & Aviation
- Military & Defense Systems
- Radar Systems
- Satellite Communications
- RF & Microwave Modules
- Wireless Communication Equipment
- High-Density PCB Interconnections
- Chassis-to-Chassis Connections
- Cabinet-to-Cabinet Connections
- Test & Measurement Equipment
- Electronic Instrumentation
