Product Overview

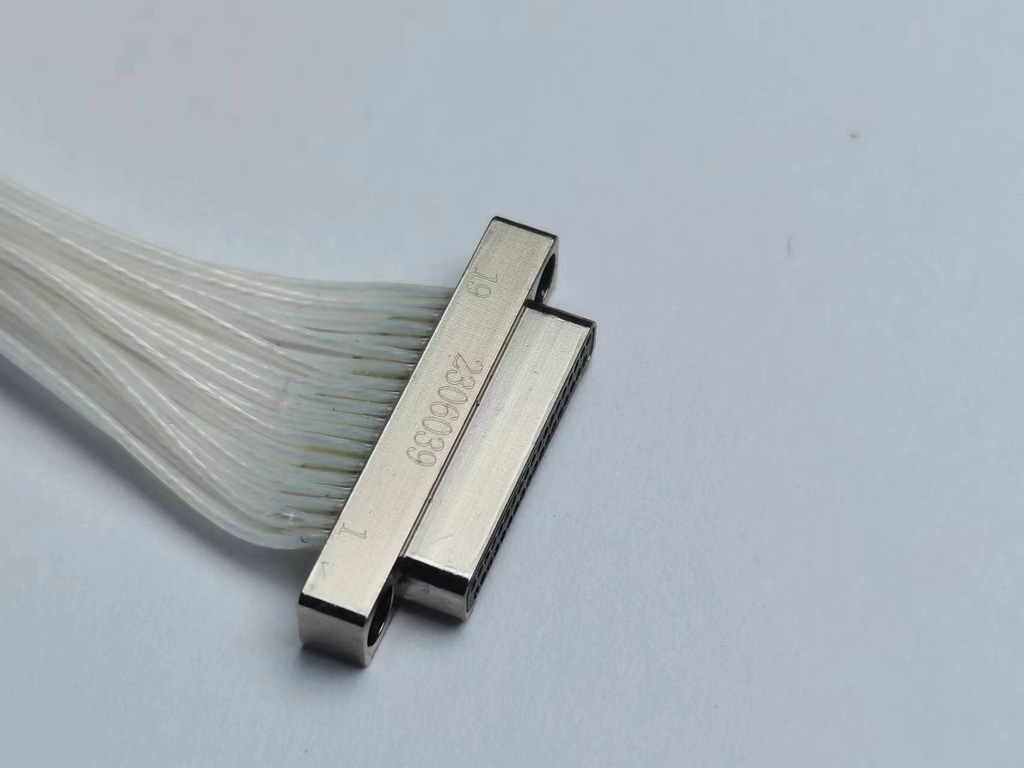

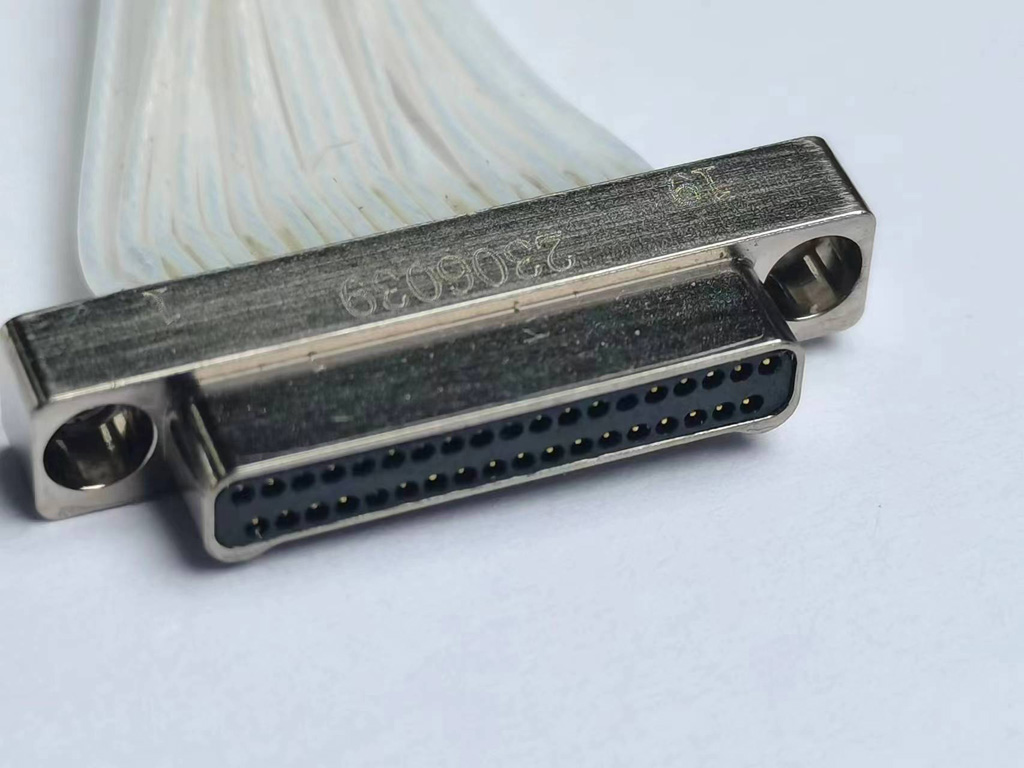

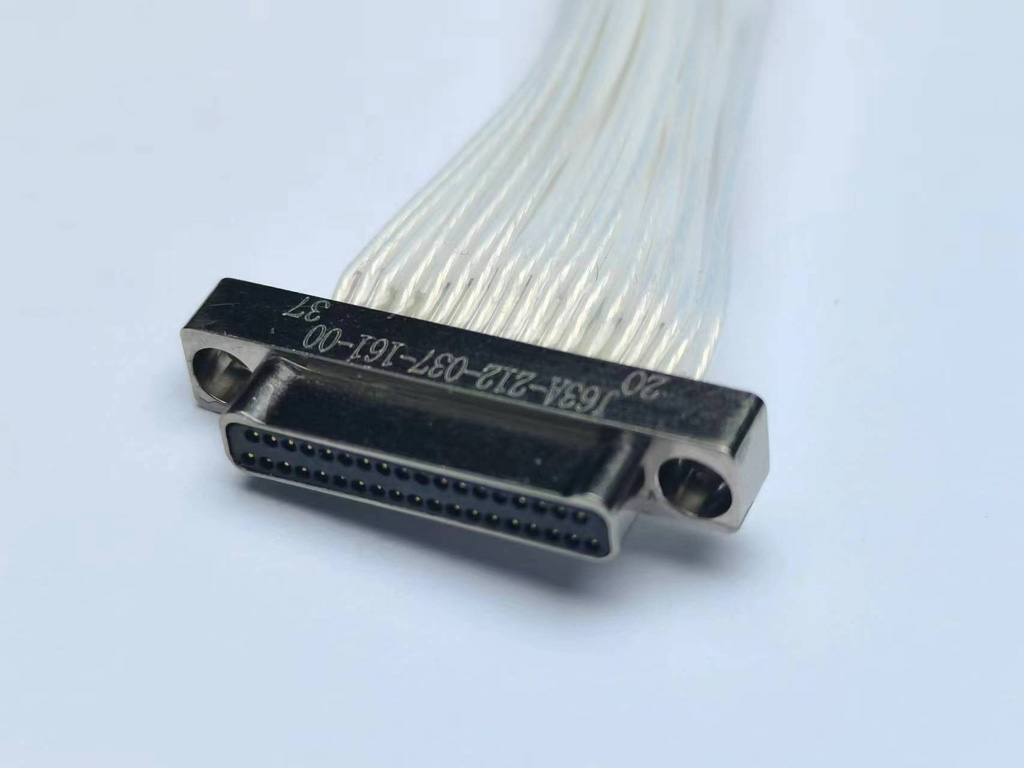

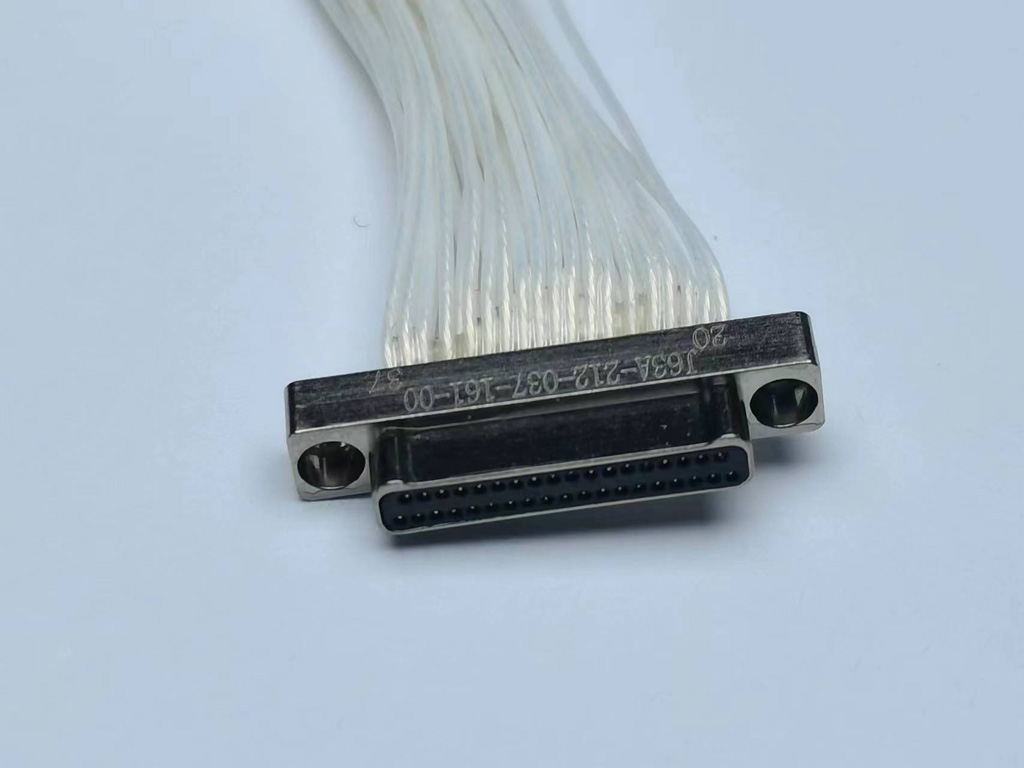

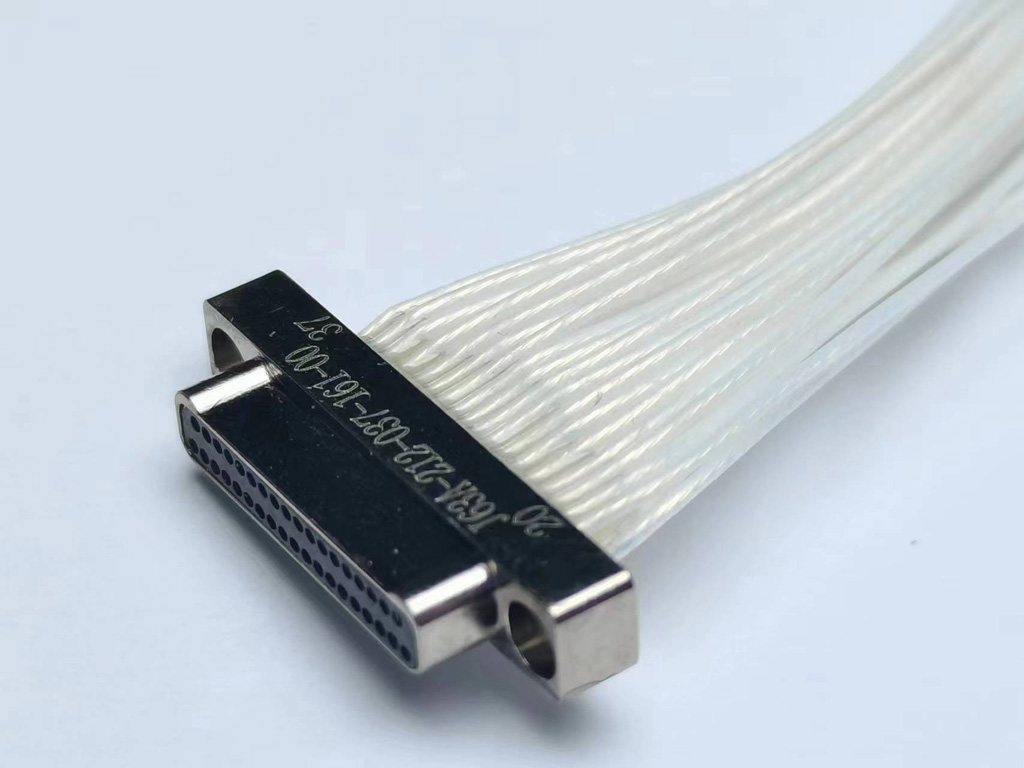

The J63A Series Nano D Connectors are miniature, high-density rectangular connectors designed for aerospace, military, avionics, satellite, and other mission-critical electronic systems requiring exceptional reliability, compact size, and lightweight construction.
The J63A and J70A series share the same electrical and mechanical characteristics, differing only slightly in their external dimensions.
These connectors feature 0.635 mm contact spacing and utilize flexible twisted-wire nano contacts (Twist Pin Technology) to provide excellent electrical performance, long service life, and reliable operation under severe environmental conditions.
The plug and receptacle are secured using a screw-lock coupling system, ensuring smooth mating, secure locking, and excellent vibration resistance.
Key Features
- High-density Nano D connector
- Ultra-miniature 0.635 mm contact pitch
- Lightweight and compact design
- Flexible twisted-pin (Twist Pin) contact technology
- Screw-lock coupling for secure connection
- Smooth insertion and extraction
- Excellent vibration and shock resistance
- High contact reliability
- Designed for aerospace and military applications
- Suitable for lightweight electronic systems
Available Contact Arrangements
The J63A Series is available in the following contact counts:
- 5 Contacts
- 9 Contacts
- 15 Contacts
- 21 Contacts
- 25 Contacts
- 31 Contacts
- 37 Contacts
- 51 Contacts
- 65 Contacts
- 69 Contacts
- 85 Contacts
Mechanical Design
- Contact Pitch: 0.635 mm
- Crimp Wire Size: 0.035 mm²
- Plug: Twisted-pin contacts
- Receptacle: Socket contacts
- Coupling Method: Screw and nut locking system
- Fixed and free-end configurations available
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | J63A |
| Contact Pitch | 0.635 mm |
| Available Contacts | 5, 9, 15, 21, 25, 31, 37, 51, 65, 69, 85 |
| Wire Size | 0.035 mm² (Crimp) |
| Rated Current | 1 A |
| Contact Resistance | ≤21 mΩ |
| Insulation Resistance | ≥5000 MΩ @100 VDC |
| Dielectric Withstanding Voltage | 250 VAC |
| Mechanical Life | 200 Mating Cycles |
| Operating Temperature | -55°C to +125°C |
| Vibration | 10–2000 Hz, 196 m/s² |
| Random Vibration | 0.4 G²/Hz, 23.1 Grms |
| Shock Resistance | 980 m/s² (6 ms) |
Applications
The J63A Series is ideal for:
- Aerospace Systems
- Military Equipment
- Avionics
- UAV & Drone Systems
- Satellite Electronics
- Missile Systems
- Radar Equipment
- Communication Systems
- Industrial Control
- Medical Electronics
- Test & Measurement Equipment
Advantages
- Ultra-miniature size
- High contact density
- Lightweight construction
- Excellent signal integrity
- Reliable screw-lock mechanism
- Outstanding resistance to vibration and shock
- High durability in demanding environments
- Designed for mission-critical applications
